DocBook

Sections

<section id="sectionId">
  <title>Section Title</title>
  <!-- section content comes here -->
</section>

Note the xml comment tags. The section id attribute is optional. You can use it on any tag to provide a target for an internal link. Id attributes must be unique in a document. See Links below.

You can nest sections. There are tags to support nesting (sect1, sect2, sect3, etc), but they offer no advantage over plain section.

Paragraphs

<para>Paragraph 1 content.</para>
<para>Paragraph 2 content.</para>

Paragraph 1 content.

Paragraph 2 content.

Lists

Itemized (bullet) list:

<itemizedlist>
  <listitem>First item content.</listitem>
  <listitem>Second item content.</listitem>
</itemizedlist>

• First item content.
• Second item content.

Ordered (numbered) list:

<orderedlist>
  <listitem>First item content.</listitem>
  <listitem>Second item content.</listitem>
</orderedlist>

1. First item content.
2. Second item content.

Lists can be nested.

Tables

Table with title:

<table>
  <title>Table Title</title>
  <tgroup cols="2">
    <colspec colwidth="30mm"/>
    <colspec colwidth="110mm"/>
    <thead>
      <row>
        <entry>column1 title</entry>
        <entry>column2 title</entry>
      </row>
    </thead>
    <tbody>
      <row>
        <entry>row1 column1 content</entry>
        <entry>row1 column2 content</entry>
      </row>
      <row>
        <entry>row2 column1 content</entry>
        <entry>row2 column2 content</entry>
      </row>
    </tbody>
  </tgroup>
</table>

Table Title

column1 title	column2 title
row1 column1 content	row1 column2 content
row2 column1 content	row2 column2 content

For a table without a title, use informaltable which is otherwise the same. Table formatting isn't well behaved - more work need to tame this!

Graphics

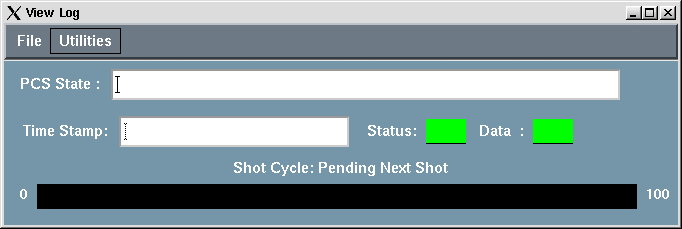

<graphic fileref="../graphics/viewlog1.png"/>

Image size control needs further work. For now, included images should be scaled to fit using an external program (eg ImageMagick - see JS for advice on this).

Links

Link to document on the Web:

For the full DocBook tagset, see
<ulink url="http://www.docbook.org/tdg/en/html/docbook.html">
DocBook: The Definitive Guide</ulink>.

For the full DocBook tagset, see DocBook: The Definitive Guide.

Link to an email address:

Author:
<ulink url="mailto:john.storrs@ukaea.org.uk">John Storrs</ulink>.

Author: John Storrs.

Link to another document on the local server:

Here is the <ulink url="../imports/style.css">style sheet</ulink> for this
document.

Here is the style sheet for this document.

Link to another part of this document:

This links to the <link linkend="sectionId">Sections</link> section above.

This links to the Sections section above. The linkend references the id attribute of the target element. Id attributes must be unique in a document.

Verbatim

<screen>
This is verbatim layout
   It is typeset in a fixed-width font.
      Spacing is preserved.
</screen>

results in

This is verbatim layout
   It is typeset in a fixed-width font.
      Spacing is preserved.

If the verbatim content includes the special xml characters '<' or '>' (eg xml text or program code), it must be preceded by <![CDATA[ and followed by ]]>.
